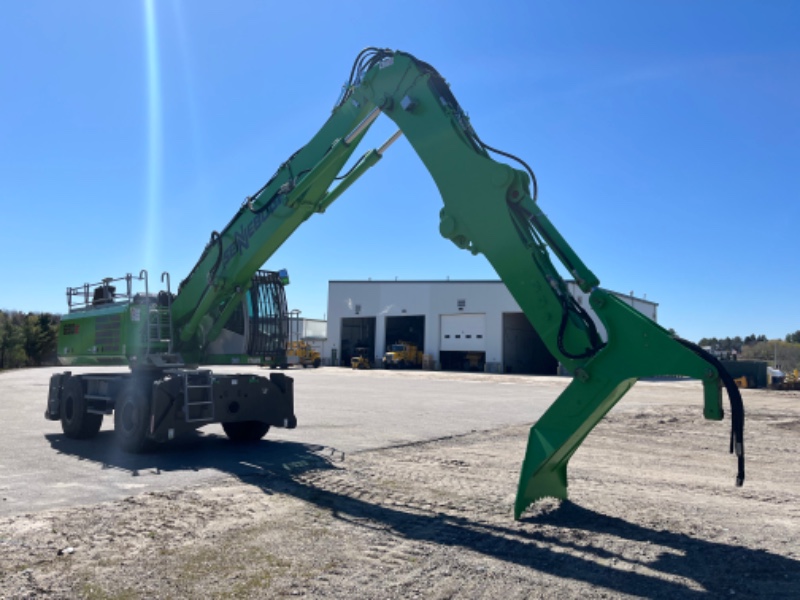

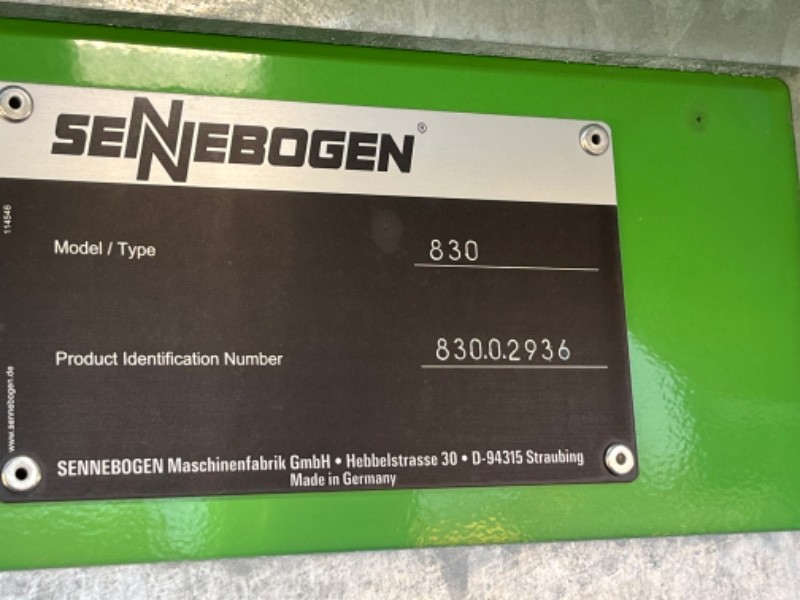

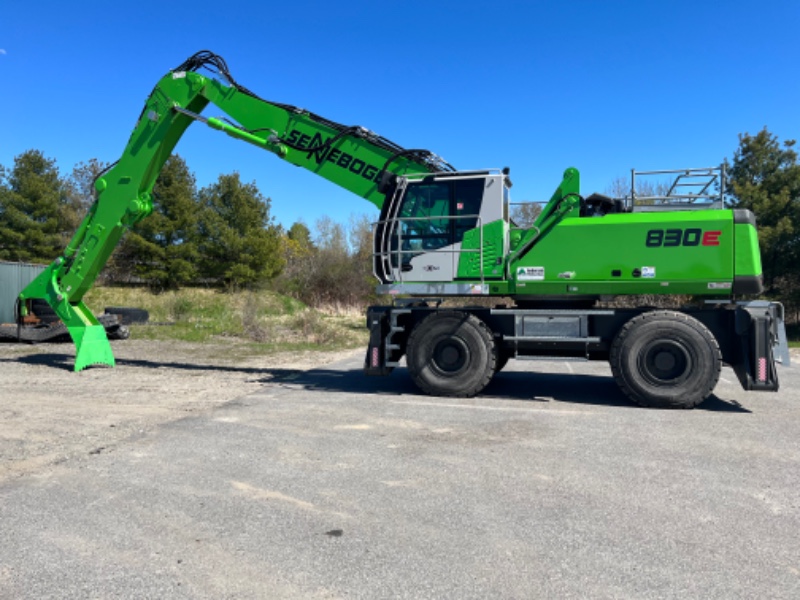

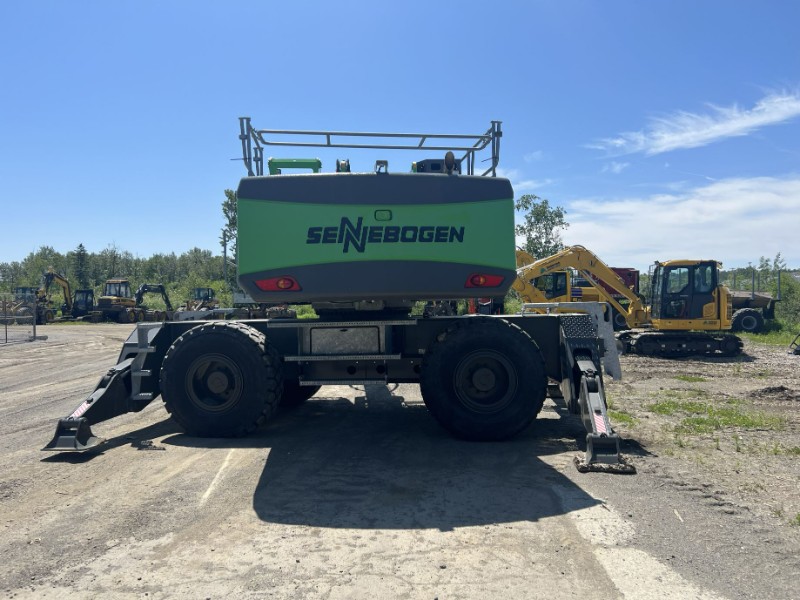

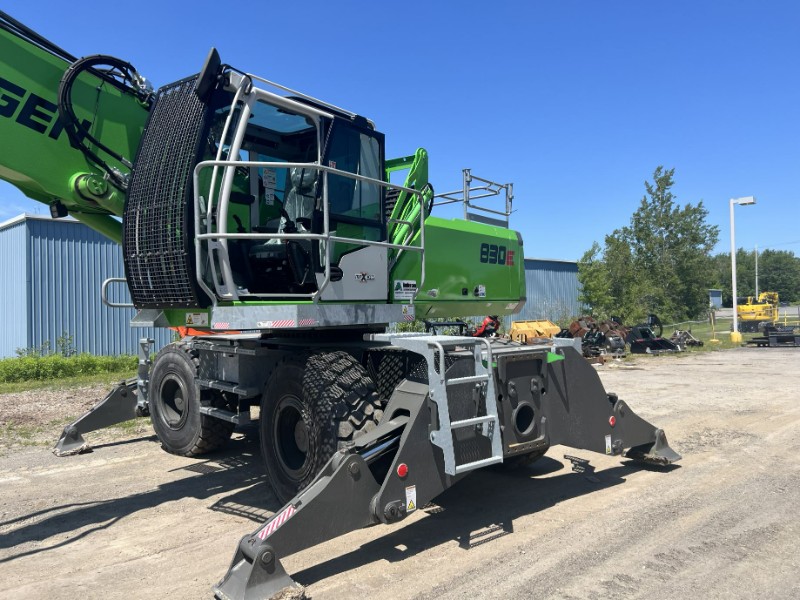

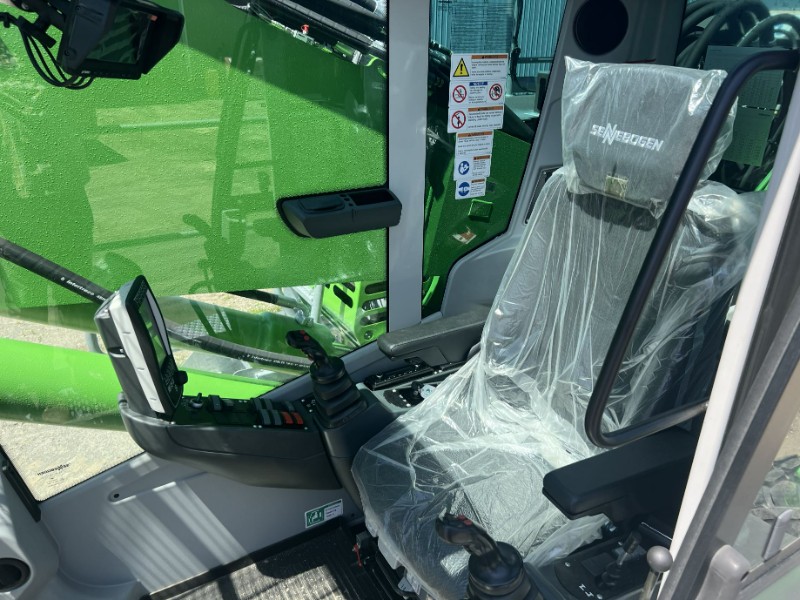

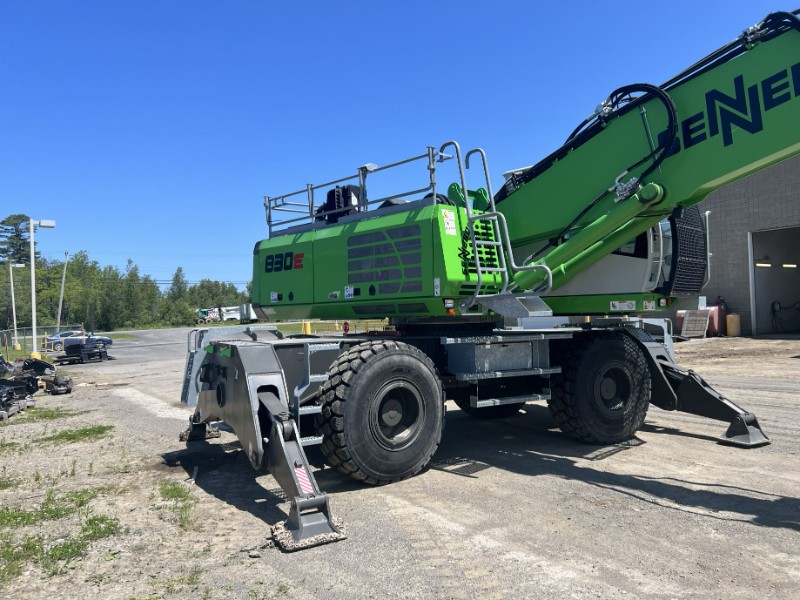

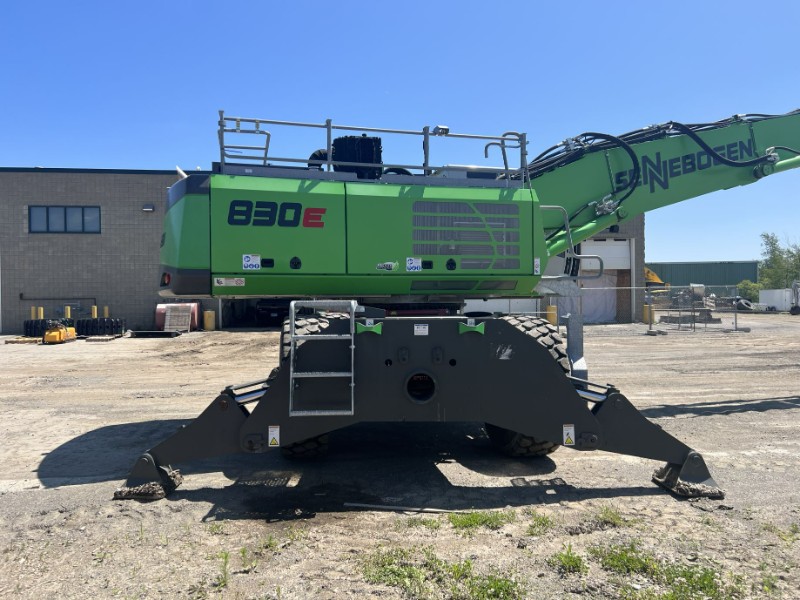

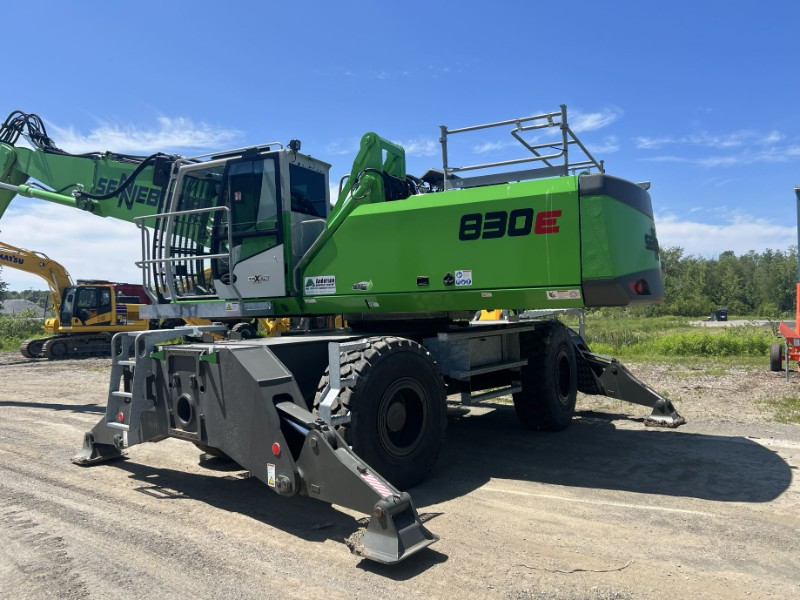

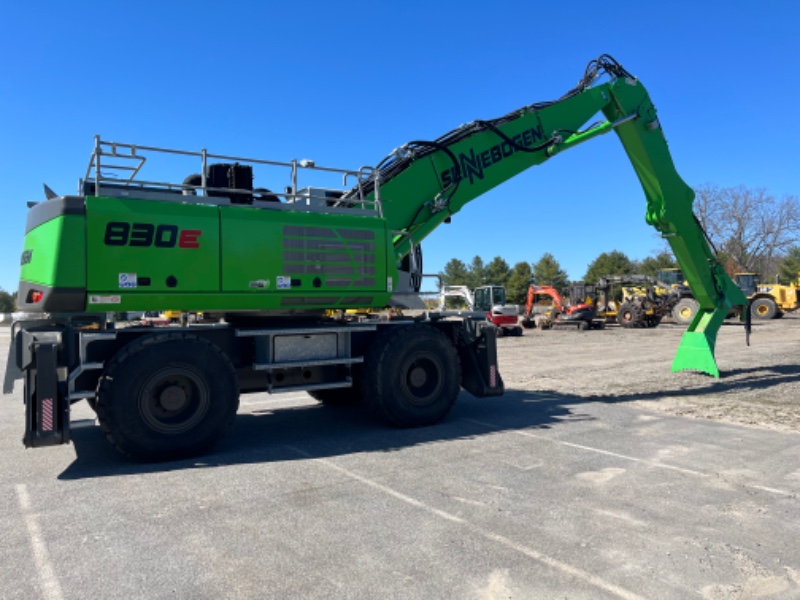

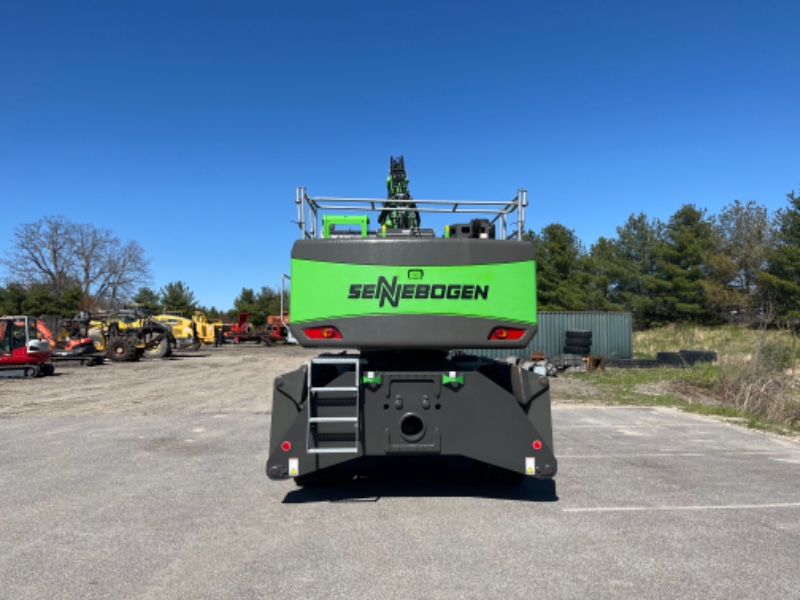

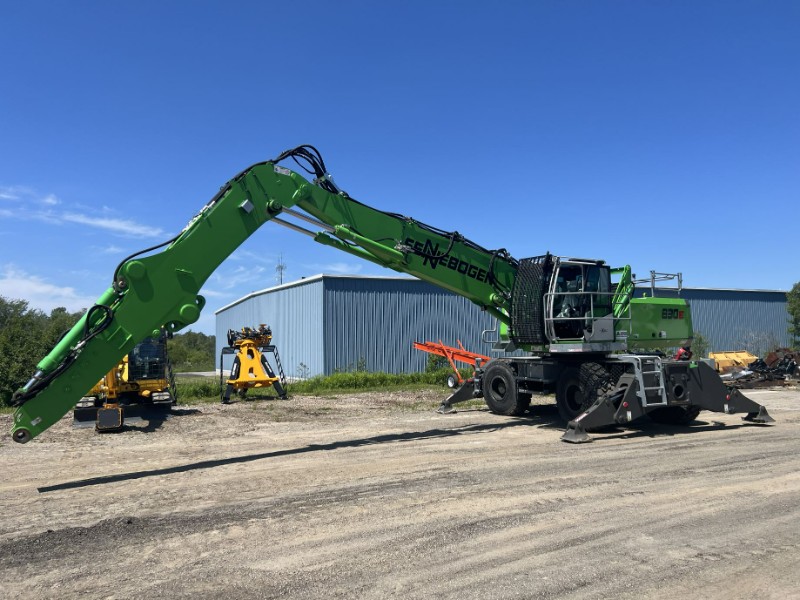

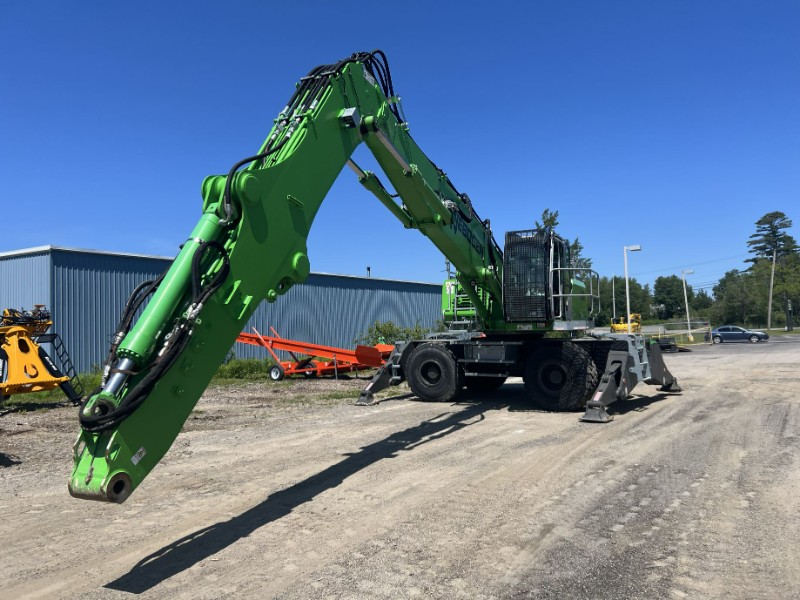

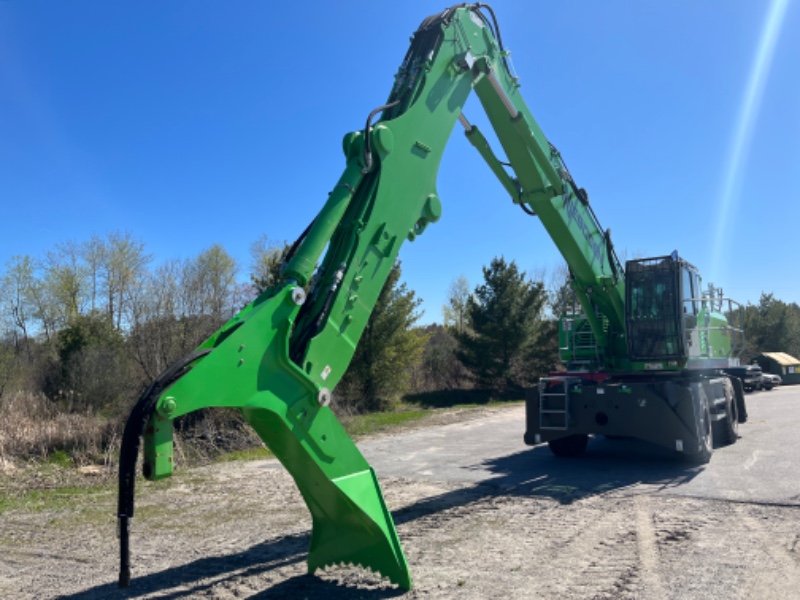

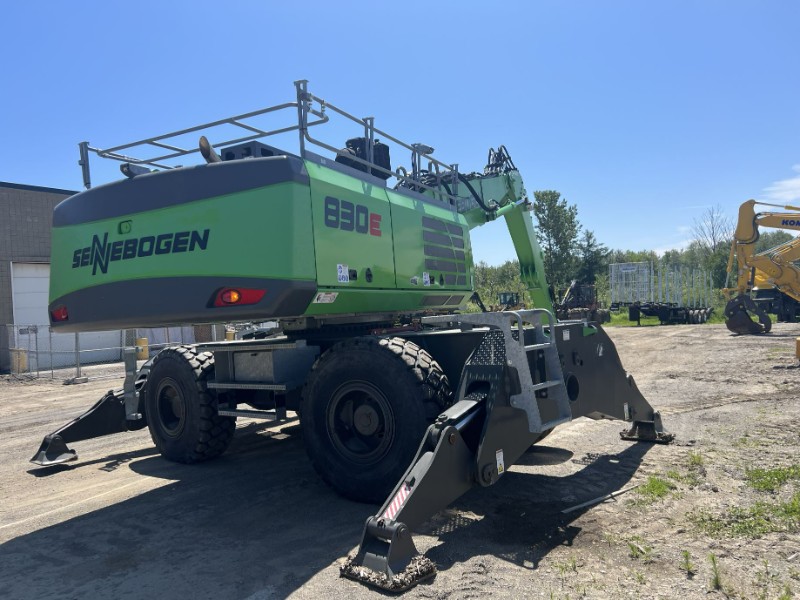

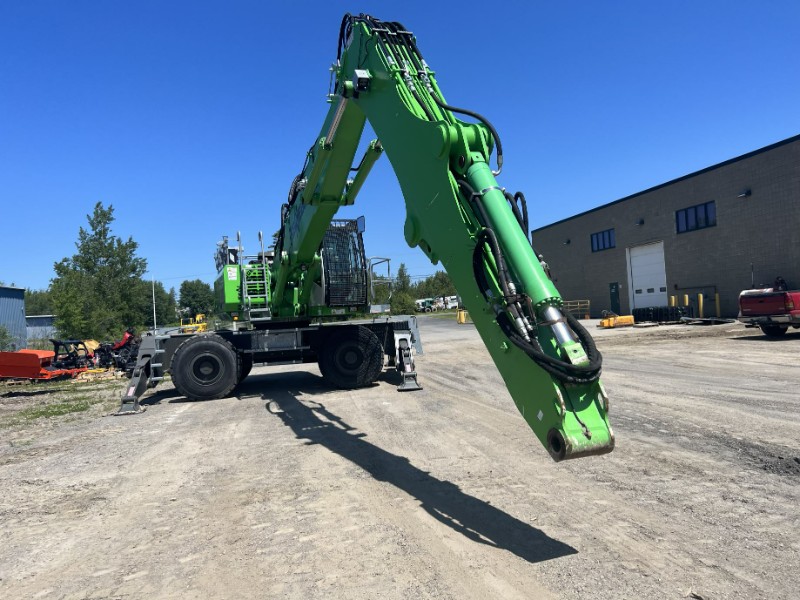

SENNEBOGEN MODEL 830M-HD-S E MATERIAL HANDLER POWERED BY A CUMMINS QSB6.7 DIESEL ENGINE, 6 CYLINDER, DIRECT INJECTION, WATER COOLED, 230 HP @ 2000 RPM, TIER 4f, TURBO INTERCOOLER DIRECT DRIVEN, WATER COOLER HYDRAULICALLY DRIVEN AND REVERSIBLE, AUTOMATIC IDLE-STOP CONTROL AND ECO-MODE HYDRAULIC SYSTEM: COMPUTER FREE, STATE OF THE ART LOAD SENSING WITH FLOW ON DEMAND HYDRAULIC COOLER HYDRAULICALLY DRIVEN REVERSIBLE. HYDRO-CLEAN FILTRATION SYSTEM WITH WATER ABSORPTION AND CONTAMINATION INDICATOR. UPPER CARRIAGE AND SWING SYSTEM: TORSION FREE, PRECISELY MACHINED UPPER CARRIAGE FRAME HIGH TORQUE AXIAL PISTON SWING MOTOR LARGE DIMENSIONED, EXTERNAL TEETH SWING BEARING WITH REMOVABLE PROTECTION COVER AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR UPPER CARRIAGE. MANUAL PINION LUBRICATION SYSTEM FOR SWING BEARING HAND RAIL ON TOP OF UPPER CARRIAGE FIRE EXTINGUISHER SET (1X CAB, 1X STORAGE COMPARTMENT) LIGHT PACKAGE CONSISTING OF (2) HALOGEN IN CAB ROOF AND (2) H4 IN FRAME OPERATOR'S CAB (MAXCAB) HYDRAULIC ELEVATING CAB (E270 - 8'8" ELEVATION),CATWALK WITH HANDRAIL BESIDE CAB MAXCAB W/ SLIDING DOOR AND WINDOW, SUNSHADE, FLOOR MAT AUTOMATIC CLIMATE CONTROL, A/C, HEATER AND DEFROSTER, AM/FM RADIO WITH CD PLAYER. SENCON VISUAL AND ACOUSTIC DIAGNOSTIC SYSTEM, AIR SUSPENSION AND ADJUSTABLE OPERATOR'S SEAT INCLUDES ARMRESTS, SEAT HEATER, HEADREST, SEAT BELT CAMERA SYSTEM WITH DISPLAY IN CAB OPERATOR'S AND MAINTENANCE MANUAL INCLUDED. HYDRAULIC & ELECTRIC SCHEMATICS (1X PRINT/1X DIGITAL) SPARE PARTS CATALOGUE (1X PRINT/1X DIGITAL) WORKING EQUIPMENT: BOOM & STICK CYLINDERS EQUIPPED WITH SAFETY CHECK VALVES AND END POSITION DUMPING ATTACHMENT OPEN/CLOSE AND ROTATE HYDRAULIC CIRCUITS AND LINES TO END OF STICK (BALL VALVE) UNDER CARRIAGE: RUBBER TIRED UNDER CARRIAGE MP34E WITH 4 POINT OUTRIGGERS (WIDTH 9'10") AUTOMATIC UNLOCK OF OSCILLATING AXLE IF UPPER CARRIAGE IN LONGITUDINAL DIRECTION TO UNDER CARRIAGE STEERING VIA JOYSTICK, FRONT WHEEL STEERING ALL WHEEL DRIVE VIA VARIABLE HYDRAULIC MOTOR WITH 2-STAGE SHIFT TRANSMISSION, 2-CIRCUIT SERVO BRAKE SYSTEM WITH ADDITIONAL SAFETY BRAKE CENTRALIZED LUBRICATION POINTS (FRONT & REAR) FOR LUBRICATION OF UNDER CARRIAGE COMPONENTS AUDIBLE TRAVEL ALARM WHILE DRIVING FORWARD AND BACKWARD TOOL BAX W/BASIC TOOLS, STICK PIN, GREASE GUN, WHEEL CHOCK, GREEN AND GRAY TOUCH UP PAINT LOCATED IN UNDER CARRIAGE TOOL BOX. FRONT PROTECTION GUARD FOR FRONT WINDSHIELD (RETROFIT KIT) LIVE HEEL HYDRAULICS, INCLUDING HYDRAULIC CONTROLS AND HOSES TO BOOM HEAD. ADDITIONAL LIGHT PACKAGE: 1X AT CAB, BACKWARDS WORKING EQUIPMENT K13 ULS-STRAIGHT BOOM/STRAIGHT UNIVERSAL LOGGING STICK. ADDITIONAL LIGHT PACKAGE: 1X AT BOOM, 2X AT STICK PNEUMATIC TIRES 20.5-25 (4 UNITS) INDIVIDUAL CONTROL OF 4-POINT OUTRIGGERS MANUAL TRAILER HITCH (MOUNTED IN REAR OF MACHINE) LOW TEMPERATURE PKG: ELECTRIC PRE-HEATING ENGINE BLOCK/ELECTRIC PREHEATING HYDRAULIC TANK, ELECTRIC PREHEATING WATER SEPERATOR ONE PLUG 110V OUTSIDE OF MACHINE
