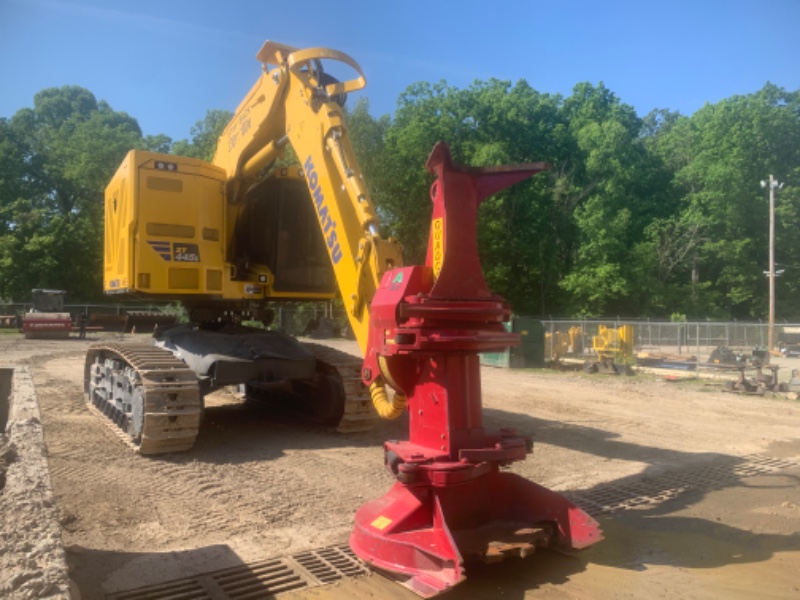

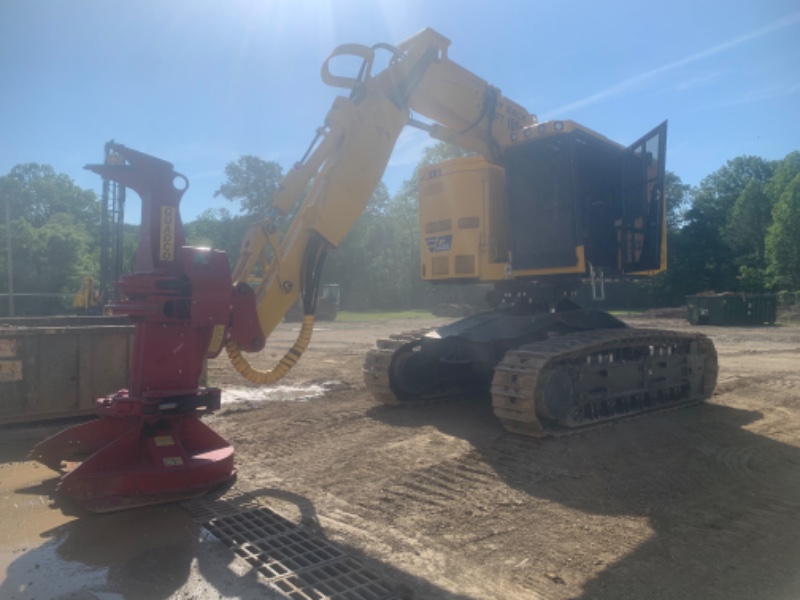

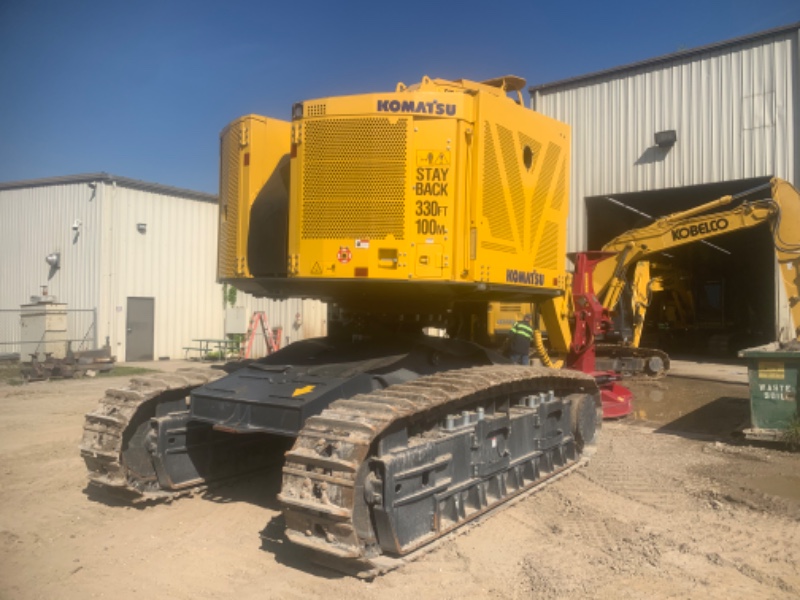

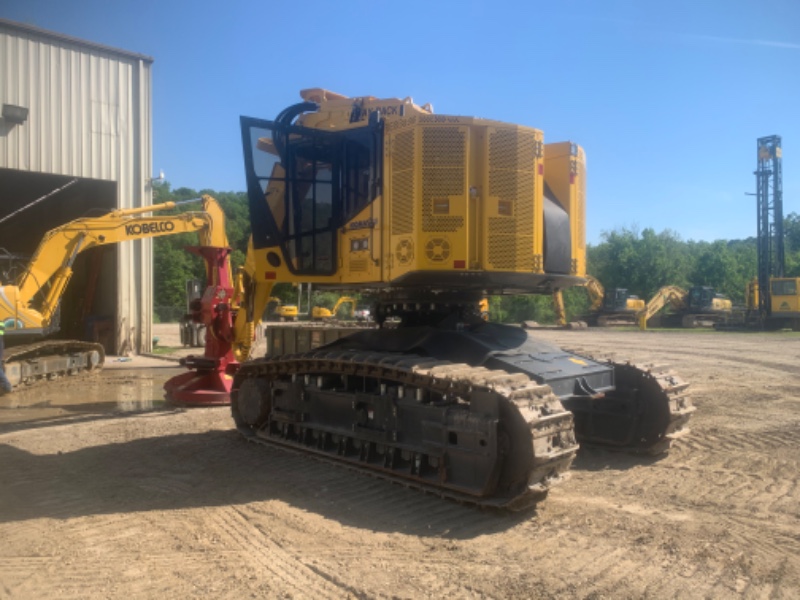

KOMATSU XT445L-5 FELLER BUNCHER POWERED BY A Cummins QSL9, 9 liter, 331HP (247 kW) rated @ 1600rpm Turbocharged direct injection, 6-cylinder, EPA Tier 4 Final emissions certified engine. Selective Catalytic Reduction (SCR) after treatment with DEF tank and heated/cooled hoses. Dry-type air cleaner with air intake pre-cleaner. Temperature-based variable speed, auto reversing engine fan. Side by side aluminum core jacket water and hydraulic radiators. Engine compartment service light. Muffler with blanket. Fuel water separator. Engine interface monitoring system Electrical: Alternator, 100 ampere, 24V Batteries, 2 x 12V, 950 AH with master disconnect Work lights, 11 LED type. Carbody, 8'4" gauge, 10'4" (3140mm) Komatsu 8.5" (216mm) pitch track chain, 46 links per side, 8 track rollers and 2 upper track sliders per side, Komatsu final drives with spring applied oil released track brakes, 2-Speed VDPP auto-shift track motors with variable speed control, Closed loop track drive, Hydraulic track adjusters Forestry carbody and track roller frames with removeable track shoe support guides. Storage trunk in carbody Cab, Oregon OSHA ROPS/OPS/FOPS/TOPS/FOG/WCB/ Oregon OSHA certified Forestry 1.25" (32 mm) thick Polycarbonate material front window & skylight windows 0.5" (13 mm) thick Polycarbonate material side and rear windows Adjustable high back suspension seat (height, weight, forward & back, backrest angle, armrest height, joystick forward/back),with retractable 3" wide Seat belt, Electrical joystick/foot pedal controls, IQAN-MD4 Digital Control System with 7" (18cm) LED touchscreen display, Instrument panel with switches, dials, LED warning lights and engine stop button. Automatic air conditioner, heater & defroster with pressurization, Ventilation fan, interior dome LED light: 2 x 12V power outlets Radio - AM/FM/Weather Band stereo with iPod/MP3 input jack and antenna Adjustable cellphone holder; fold-down/up cupholder Coat hook with magnetic and moveable base Insulated drink bottle & lunch box cooler Lockable cab door 3 Emergency escapes (front window, side door and roof hatch Fire Extinguisher, handheld 10 lbs. Hydraulic controls: Load Sensing Hydraulic System Implementing pump, 1x VDPP 86 gpm (324 ltr/min) Auxilary pump, 1x VDPP, 53gpm (200 ltr/min) Track drive pump, 2x VDPP, 44 gpm (167 ltr/min)each Saw drive pump, 1x VDPP, 38 gpm (143 ltr/min) Fan pump, 2x gear, 11 gpm (44 ltr/min) each Charge pump, 1x gear, 25 gpm (95 ltr/min) main hydraulic valve & arm attachment hydraulic valve Control levers for boom, arm, tool and swing Sure Grip control handles IQAN-MD4 Programmable Digital Control System Hydraulic oil cooler with temperature-based variable speed, auto reversing hydraulic fan 24V Electric hydraulic tank oil fill pump. Hydraulic tank vacuum pump Charge oil relief heater Leveling System: 2 cylinder, 4-way HD cab leveling 56CC FDRPP swing motor Upper turntable continuous rotation HD 22 bolt single row swing bearing OTHER STANDARD: KOMTRAX Level 2.5 monitoring system (satellite based) Operator Identification System Auto-idle shutdown system Rear view monitoring system (1 camera) Electric horn Travel Alarm Service work platform, hydraulically actuated service doors, swing out (4) Heavy duty guards and covers Rubber debris skirt-Carbody heavy duty tow hooks Marks and plates English Hydraulic oil ISO 46 Boom, Feller Buncher-14'10" (4530 mm)Length Box section Main Boom Arm, 13'0"(3960 mm) Straight with Tree Deflector-Feller Buncher Straight Box section arm with tree deflector for use with cutting attachments requiring a tool cylinder. Hydraulic Bar Saw, Intermittent Disc Saw, Combination Bar/Disc Saw Htdraulic arrangement for operation of bar saw, intermittent disc saw or combination bar/disc saw head. Includes valve sections/lines/piping for grab/accumulator arms, lateral tilt, sawmotor and on/off switch in cab to activate saw motor. 24" (600 mm) Single Grouser Single Grouser extreme service track shoes, center punched English-stickers/decal Fire Supression, Automatic Liquid Chemical Liquid chemical fire suppression system, includes engine compartment heat sensor, spray nozzles, auto/manual release and control module. Oil Cooler, Pump Drive additional oil cooler to cool and filter hydraulic pump drive oil: contains spin-on hydraulic oil filter. Compatible with ESPAR fuel fired coolant heater. Oil Sampling Kit (US) Heater, ESPAR Fuel fired Jacket Water and Hydraulic Oil Preheater 2AD62 - Premium Seat (ILOS)

ATTACHMENTS SOLD SEPARATELY
