2017 - BANDIT - 3090TRA
|
Call for Price
|
|
|
|
|
| |
|
| |
|
| |
|
|
|

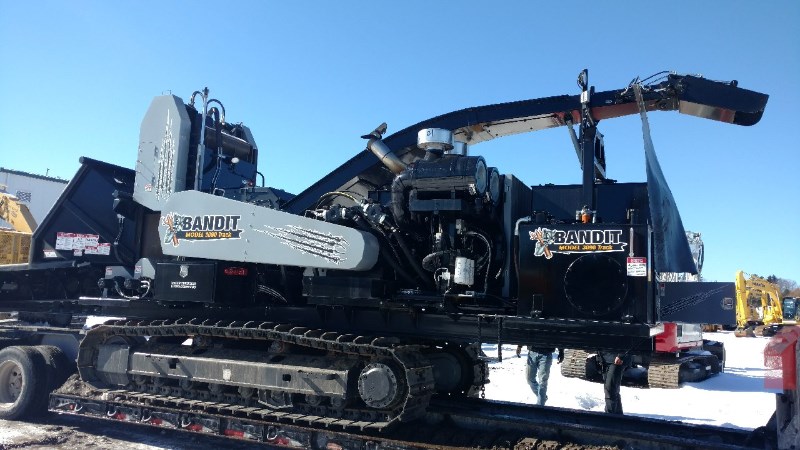

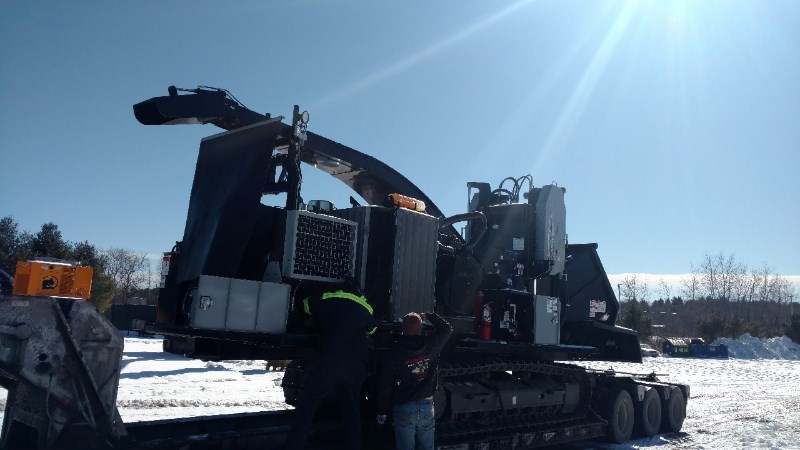

BANDIT MODEL 3090TRA TRACK WHOLE TREE CHIPPER (24" DRUM STYLE).
VOLVO TAD1643VE, 768 HP ENGINE WITHOUT CLUTCH(REMOTE MOUNTED RADIATOR PACKAGE WITH REVERSING FAN) TIER 2
BANDIT CONTROL PANEL
RADIO REMOTE CONTROL WITH TETHER REMOTE AND 30' CABLE. REMOTE CONTROLS THE FOLLOWING FUNCTIONS: (DISCHARGE FUNCTIONS, FEED SYSTEM FORWARD/REVERSE, YOKE UP/DOWN THROTTLE AND ENGINE KILL SWITCH)
REVERSING AUTO FEED SYSTEM
(2) HYDRAULIC LIFT CYLINDERS

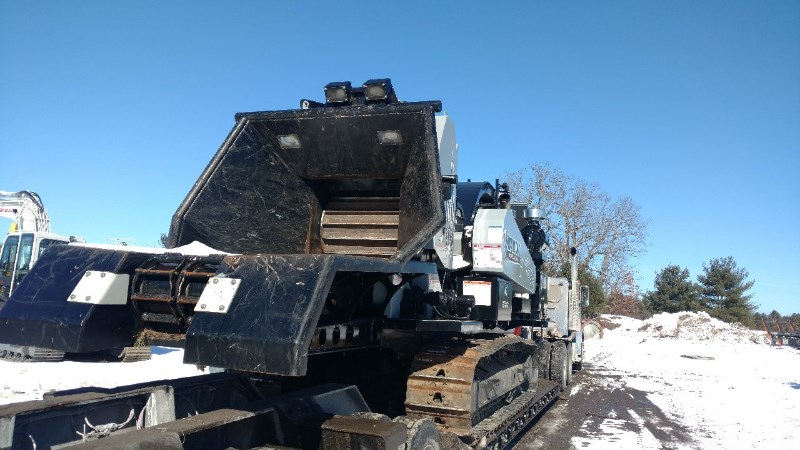

SLIDE BOX (CHAIN DRIVEN)FEED SYSTEM. INCLUDES (1) 36" WIDE X 30" DIA TOP FEED WHEEL, AND 36" WIDE X 10 5/8" DIA BOTTOM WHEEL. ALSO INCLUDES 7-1/2' INFEED CONVEYOR
WITH HEAVY DUTY BENT STYLE INFEED CHAIN.
PROPORTIONAL HYDRAULIC FEED SYSTEM
ENGINE START PANEL.
STATIONARY DISCHARGE SYSTEM WITH UP & DOWN (50 DEGREES)AND SIDE TO SIDE (50 DEGREES) CHIP DEFLECTOR, HYDRAULICALLY OPERATED. ALSO INCLUDES (2) BOTTOM CLEAN OUT INSPECTION DOORS. TOP OF DISCHARGE FEATURES REPLACEABLE AR STEEL.
37" DIAM X 36" WIDE DRUM W/ (6) 5/8" X 6" X 12 1/8" BABBITED KNIVES AND (6) 3/8" X 6" X 12 1/8" COUNTER KNIVES.
IN LINE HYDRAULIC PRESSURE CHECK SYSTEM.
300 GAL FUEL TANK W/ MAGNETIC DRAIN PLUG,
AND ALUMINUM FLUID SIGHT GAUGE.
200 GAL STEEL HYDRAULIC TANK WITH MAGNETIC DRAIN PLUG, LOCKABLE FILLER CAP, MESH SCREEN STRAINER AND GATE VALVE.
SAFETY DVD, (2) 6" WIDE X 9" TALL BANDIT OPERATOR'S MANUALS (ONE PAPER COPY AND ONE WATERPROOF COPY TETHERED TO MACHINE) AND (1) ENGINE OPERATORS'S MANUAL.
SPANISH AND ENGLISH COMBINATION SAFETY DECALS
BANDED CHIPPER BELTS
ENGINE DISABLE PLUG FOR HOOD LOCKING PIN-PREVENTING ENGINE FROM OPERATING WITHOUT PIN IN PLACE.
2-1/2 POUND FIRE EXTINGUISHER WITH MOUNT.
STANDARD IMRON INDUSTRIAL URETHANE BLACK. CHIPPER GUARD GREY.
HPTO15 PT TECH FLUID CLUTCH
CATERPILLAR 320L STEEL TRACK UNDERCARRIAGE (600MM, 23-5/8" WIDE TRACK PADS) SINGLE GROUSER.
DELUXE LIGHT PACKAGE INCLUDES: (7) HELLA WORKLAMP LIGHTS, (2) ARE MOUNTED AT THE TOP OF THE INFEED ON EACH SIDE, (2) ARE MOUNTED ON EACH SIDE OF THE INFEED CONVEYOR, (2) ON EACH SIDE OF THE DISCHARGE CHUTE AND (1) ON TOP OF THE DRUM/DISC HOOD.
CORDLESS 1/2" IMPACT WRENCH 4.0 HORSEPOWER MINI AIR COMPRESSOR
BANDIT 5 YEAR "GUTS" WARRANTY (INCLUDES COVERAGE ON BANDIT MANUFACTURED COMPONENTS ON THE DRUM/DISC AND SLIDE BOX FEED SYSTEM.
|
