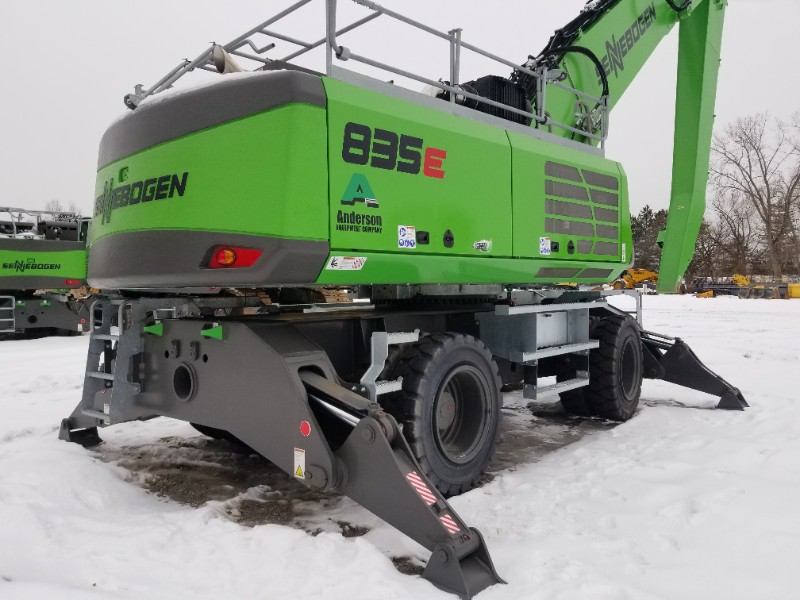

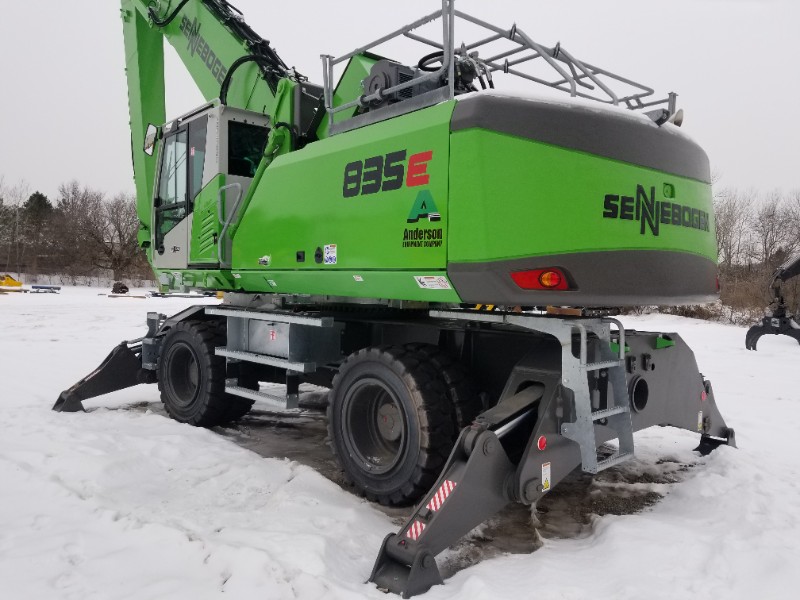

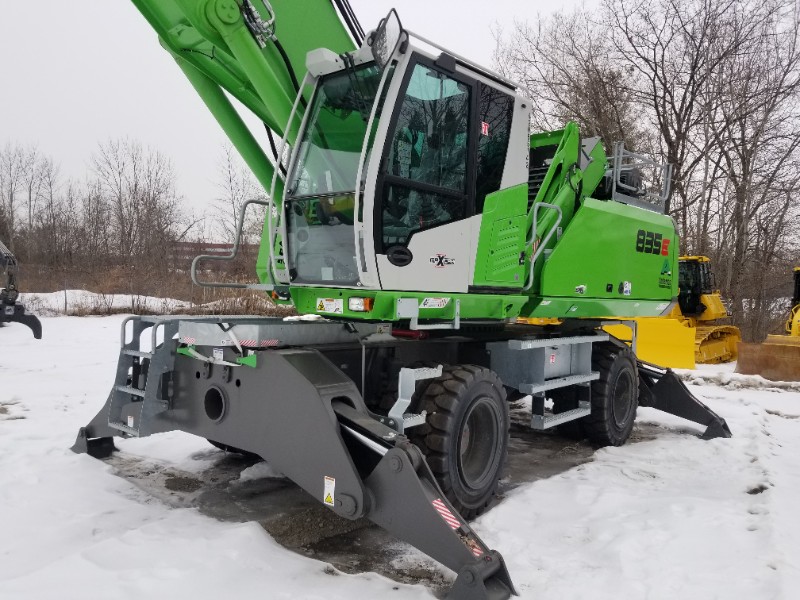

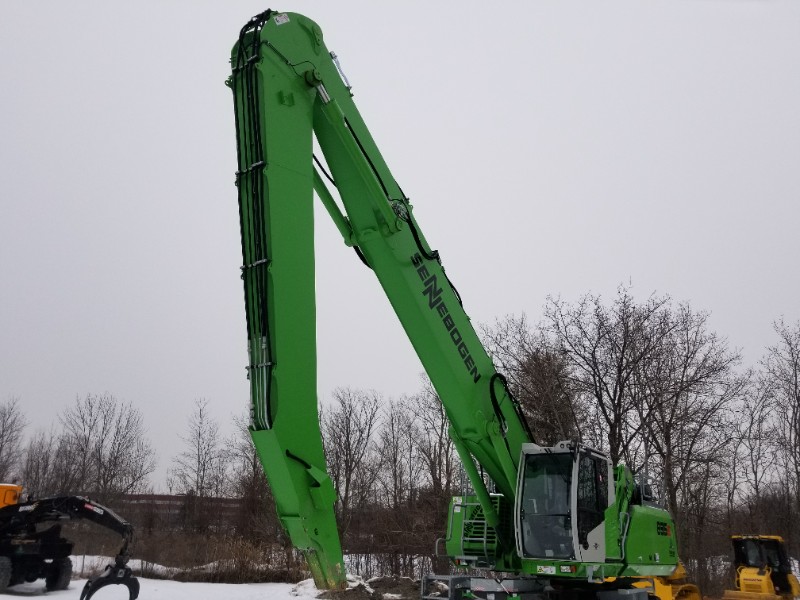

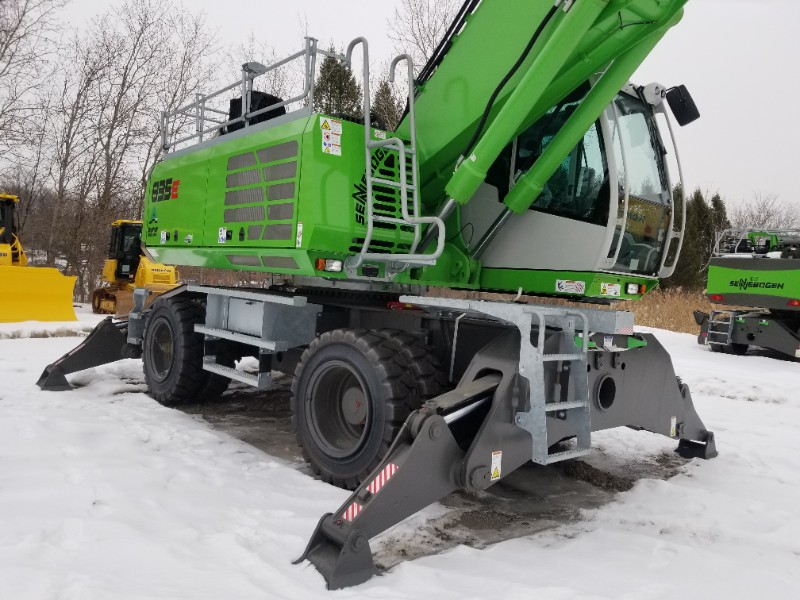

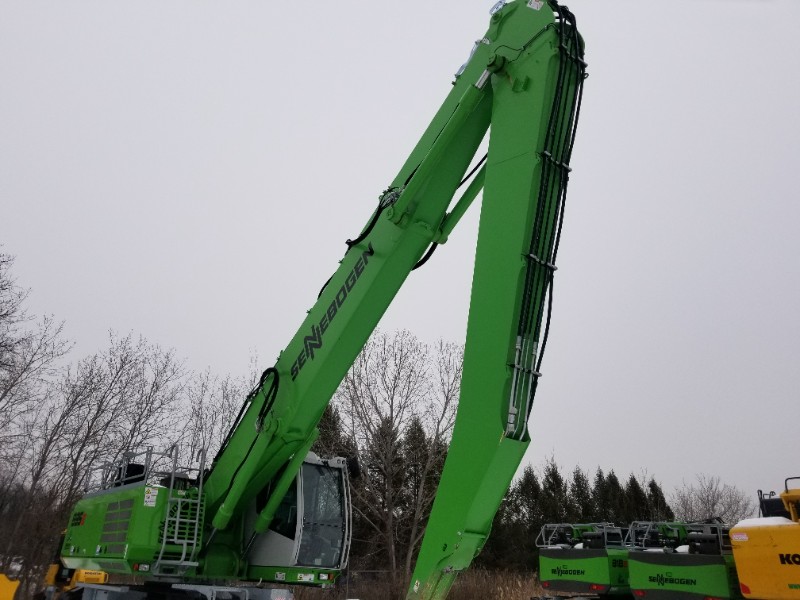

2019 - SENNEBOGEN - 835M-E $663,180


See Spec Document for SENNEBOGEN 835M-E See Brochure for SENNEBOGEN 835M-E



SENNEBOGEN MODEL 835M-E GREEN LINE MATERIAL HANDLER POWERED BY A CUMMINS QSL9 DIESEL ENGINE, 6 CYLINDER, DIRECT INJECTION, WATER COOLED, 305 HP @ 2000 RPM, TIER 4f, TURBO INTERCOOLER DIRECT DRIVEN. WATER COOLER HYDRAULICALLY DRIVEN, REVERSIBLE. AUTOMATIC IDLE-STOP AND ECO-MODE FOR DIESEL ENGINE. HYDRAULIC SYSTEM: COMPUTER FREE, STATE OF THE ART LOAD SENSING WITH FLOW-ON DEMAND CONTROL. HYDRAULIC COOLER HYDRAULICALLY DRIVEN, REVERSIBLE. HYDRO-CLEAN FILTRATION SYSTEM WITH WATER ABSORPTION AND CONTAMINATION INDICATOR. UPPER CARRIAGE AND SWING:TORSION FREE, PRECISELY MACHINED UPPER CARRIAGE FRAME. HIGH TORQUE AXIAL PISTON SWING MOTOR. LARGE DIMENSIONED, EXTERNAL TEETH SWING BEARING W/REMOVABLE PROTECTION COVER. AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR UPPER CARRIAGE.MANUAL PINION LUBRICATION SYSTEM FOR SWING BEARING. HANDRAIL ON TOP OF UPPER CARRIAGE. FIRE EXTINGUISHER SET (1 CAB AND 1 STORAGE COMPARTMENT). LIGHT PACKAGE CONSISTING OF 2 HALOGENS IN CAB ROOF AND 2 H4 IN FRAME. OPERATOR'S CAB-(MAXCAB): HYDRAULIC ELEVATING CAB (E270 - 8'8" ELEVATION). CATWALK AND HANDRAIL BESIDE CAB. MAXCAB WITH SLIDING DOOR AND DOOR WINDOW AS SLIDING WINDOW, SUNSHADE, FLOOR MAT. SKYLIGHT OF BULLET PROOF GLASS. WINDSHIELD OF BULLET PROOF GLASS (Fixed/No Tilt Out). AUTOMATIC CLIMATE CONTROL WITH AC, HEATER AND DEFROSTER. AM/FM RADIO W/ BLUETOOTH. "SENCON" VISUAL AND ACOUSTIC DIAGNOSTIC SYSTEM FOR MONITORING ALL ESSENTIAL MACHINE FUNCTIONS. AIR SUSPENDED AND ADJUSTABLE OPERATOR'S SEAT INCLUDES ARMRESTS, SEAT HEATER, HEADREST, SEATBELT. CAMERA SYSTEM W/DISPLAY IN CAB. OPERATOR'S & MAINTENANCE MANUAL, ALONG W/SPARE PARTS MANUAL (1 PRINT COPY AND ONE CD COPY). WORKING EQUIP: K16 51'6" REACH/PURPOSE BUILT MATERIAL HANDLING WORKING EQUIPMENT (BOOM POSITION 1) STRAIGHT MATERIAL HANDLING BOOM 29'10", W/END STOP MONITORING SYSTEM AND LIMIT SWITCHES. STRAIGHT MATERIAL HANDLING STICK 22'8" WITH END STOP MONITORING SYSTEM AND LIMIT SWITCHES. BOOM & STICK CYLINDERS EQUIPPED WITH SAFETY CHECK VALVES AND END POSITION DUMPING. ATTACHMENT OPEN/CLOSE AND ROTATE HYDRAULIC CIRCUITS AND LINES INSTALLED UP TO END OF STICK (BALL VALVES) UNDER CARRIAGE: RUBBER TIRED UNDER CARRIAGE MP41E W/ 4-POINT OUTRIGGERS. AUTOMATIC UNLOCK OF OSCILLATING AXLE, IF UPPER CARRIAGE IN LONGITUDINAL DIRECTION TO UNDER CARRIAGE. SOLID RUBBER TIRES 12.00-24 (8 UNITS) INCLUSIVE INTERMEDIATE PROTECTION RING. STEERING VIA JOYSTICK, FRONT WHEEL STEERING. ALL WHEEL DRIVE VIA VARIABLE HYDRAULIC MOTOR W/2-STAGE SHIFT GEAR. PROTECTION GUARD FOR UNDER CARRIAGE TO PROTECT GEAR BOX, HYDRAULIC MOTOR AND DRIVE SHAFTS. 2-CIRCUIT SERVO BRAKE SYSTEM W/ADDITIONAL SAFETY BRAKE. CENTRALIZED LUBRICATION POINTS (FRONT & REAR) FOR LUBRICATION OF UNDER CARRIAGE COMPONENTS. AUDIBLE TRAVEL ALARM, WHILE DRIVING MACHINE (FORWARD & BACKWARD). TOOL BOX W/BASIC TOOLS (STICK PIN, GREASE GUN, WHEEL CHOCK, GREEN AND GRAY TOUCH UP PAINT). 25 KW BALDOR GENERATOR, HYDRAULIC DRIVEN WITH HUBBELL CONTROLLER. PLUG IN FRONT OF STICKTO HOOK UP MAGNET (MAGNET CONNECTION CABLE IN UNDER CARRIAGE TOOL BOX).
